Monarch 16CY Lathe Cast Iron Feed Gear Guard/Cover Panel w/Bolts

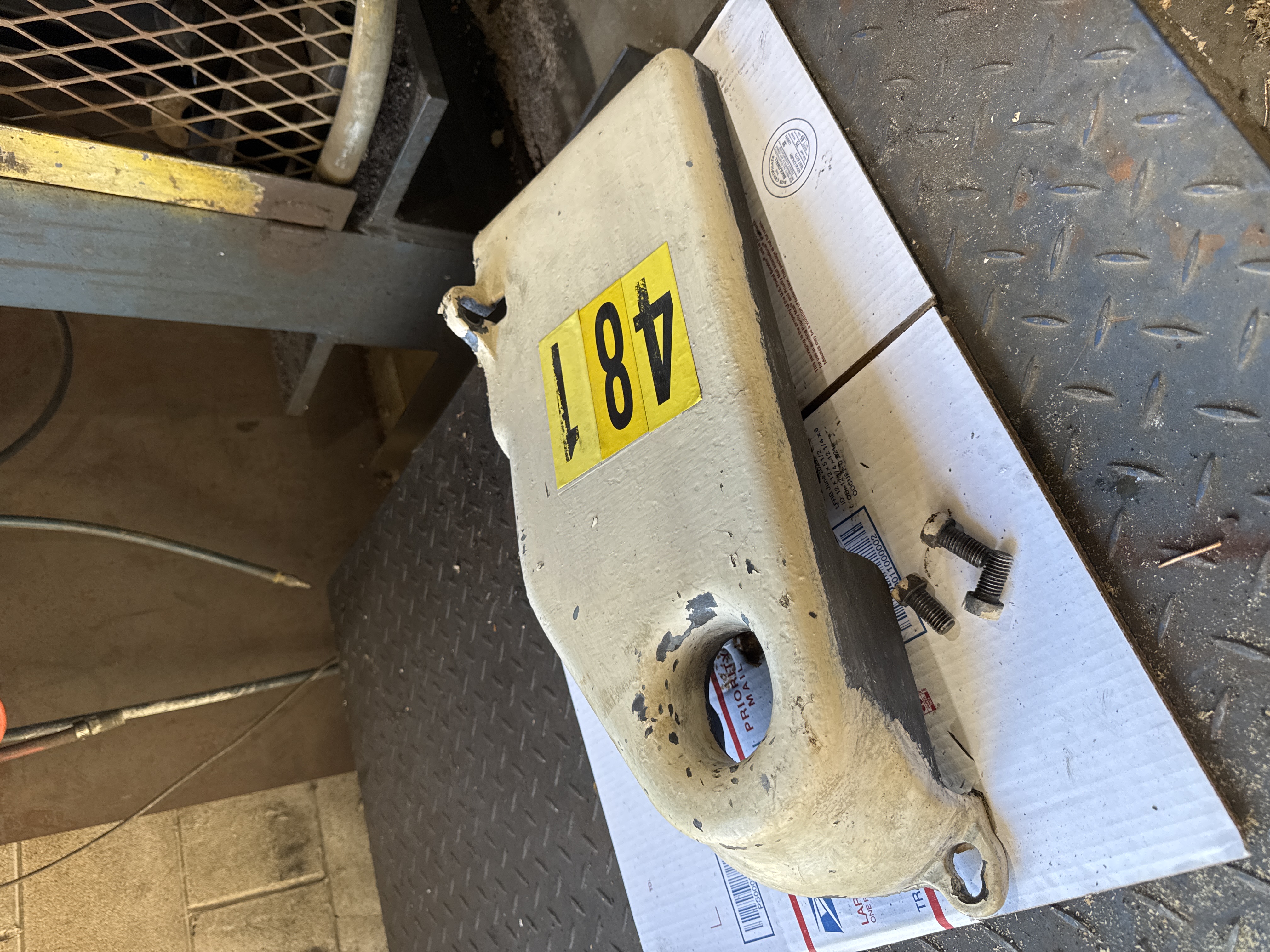

For sale is a Monarch 16CY Lathe Cast Iron Guard/Cover Panel w/ Bolts.
Heavy cast iron machine guard/cover panel. Appears to be an original
cover from an industrial lathe.
Assumption: removed from a Monarch Machine Tool Co. 16" CY engine lathe
(nameplate shown in photos: actual swing 18.5", 30" between centers,
built 9-1942, Mfr No. 17772). Please verify fitment to your machine.
Features:
- Cast iron construction
- Large circular opening at one end
- Several mounting ears/holes
- Cream/gray paint
- Includes three short hex bolts shown
Condition:
- Used, with heavy cosmetic wear from shop use
- Scratches, scuffs, paint loss, grime
- One mounting ear shows damage/chipping; edges show nicks
- No obvious cracks seen besides the chipped areas, but part is
untested
Included:
- Cover panel
- 3 mounting bolts (as pictured)
Good for replacing a missing/damaged guard on a similar machine,
restoration projects, or fabrication reference. Review photos for
measurements and condition. Sold as-is.
AI-Generated Nameplate Data (please verify independently):
CATALOG SIZE & MODEL 16" CY
ACTUAL SWING 18.5"
DISTANCE BETWEEN CENTERS 30"
MFR'G NO. 17772
BUYER'S MACHINE NO. 17772
DATE BUILT 9 - 1942
COST INSTALLED
THE MONARCH MACHINE TOOL CO.
SIDNEY, OHIO, U.S.A.
THIS MACHINE CONFORMS TO ORDERS OF THE WAR PRODUCTION BOARD
SERIAL NO. 17772
ULRICH MANUFACTURING CO.
ROANOKE, ILLINOIS, U.S.A.
