Reliance 7.5HP AC Motor 3-Phase 1165RPM came from Monarch 16"CY lathe

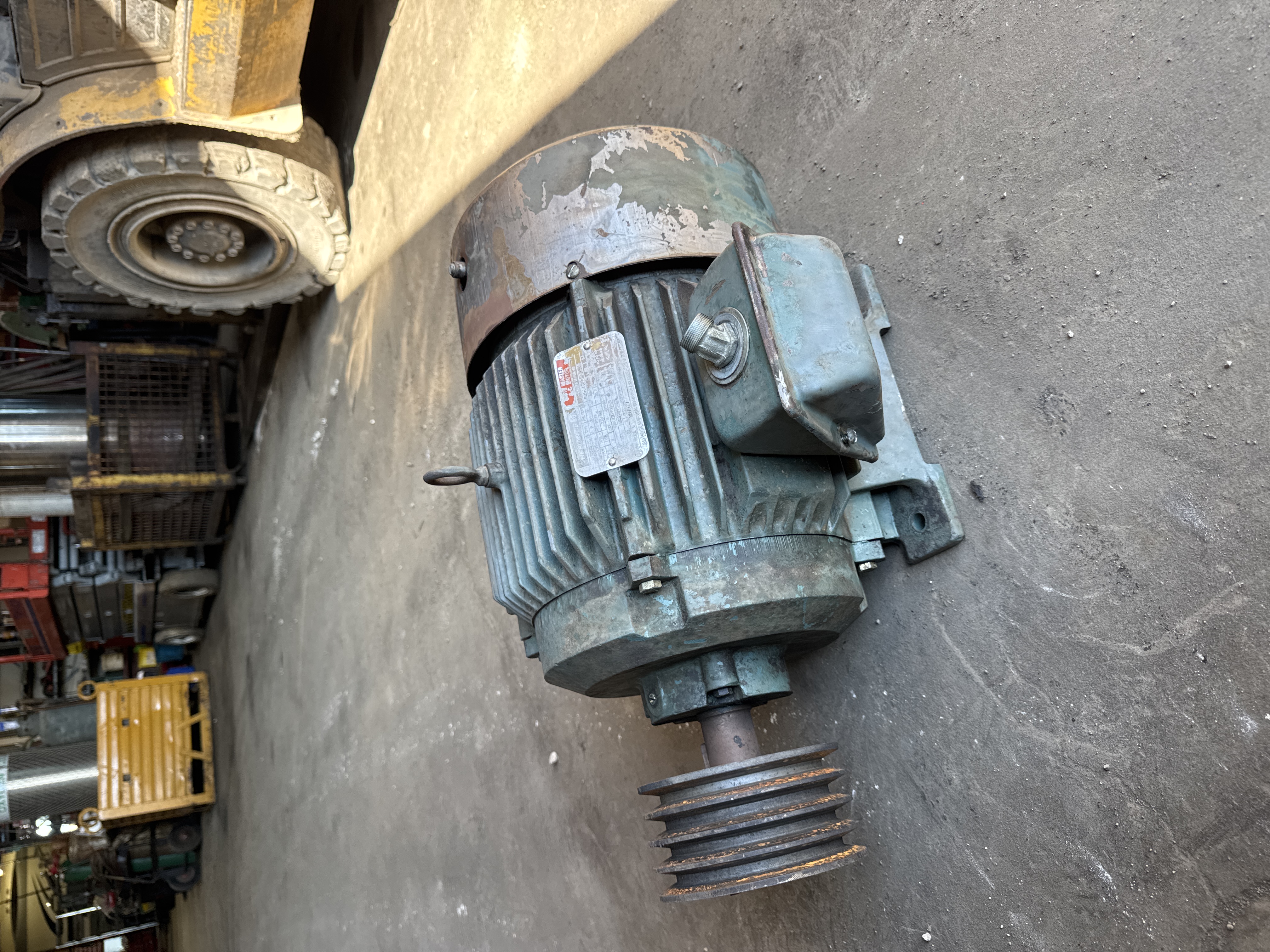

For sale is a Reliance Duty Master 7.5HP AC Motor 3-Phase 230/460V 1165RPM 254T.
Item: Industrial AC induction motor
Brand/Series: Reliance Electric Duty Master
Made in USA
Nameplate specs visible:
- 7.5 HP
- 1165 RPM
- 3-Phase, 60 Hz
- 230/460 Volts, 20/10 Amps
- Frame 254T
- Insulation Class B
- Design B, Code H
- Continuous duty
Features:
- Foot-mounted base
- Lifting eye on top
- Side junction box with cover
- Triple-groove V-belt pulley installed on keyed shaft
- Enclosed fan-cooled style housing with rear grille
Condition:
- Used, untested. Operational status unknown.
- Heavy cosmetic wear from age and use: paint loss, surface rust
(notably on pulley and end bell), scratches, grime.
- Fan guard and mounting feet appear intact.
Included:
- Motor exactly as shown with attached pulley. No cords, plugs, or
additional accessories.
Typical uses:
- Suitable for driving pumps, blowers, conveyors, or other industrial
machinery (general guidance).
Assumption: Due to size and weight, freight or local pickup may be
required.
AI-Generated Nameplate Data (please verify independently):
CATALOG SIZE & MODEL 16" CY
ACTUAL SWING 18.5"
DISTANCE BETWEEN CENTERS 30"
MFGR'S NO. 17772
BUYER'S MACHINE NO. 9-1942
DATE BUILT -
COST INSTALLED -
THE MONARCH MACHINE TOOL CO.
SIDNEY, OHIO, U.S.A.
SERIAL NO. 01772
ULRICH MANUFACTURING CO.
ROANOKE, ILLINOIS USA
